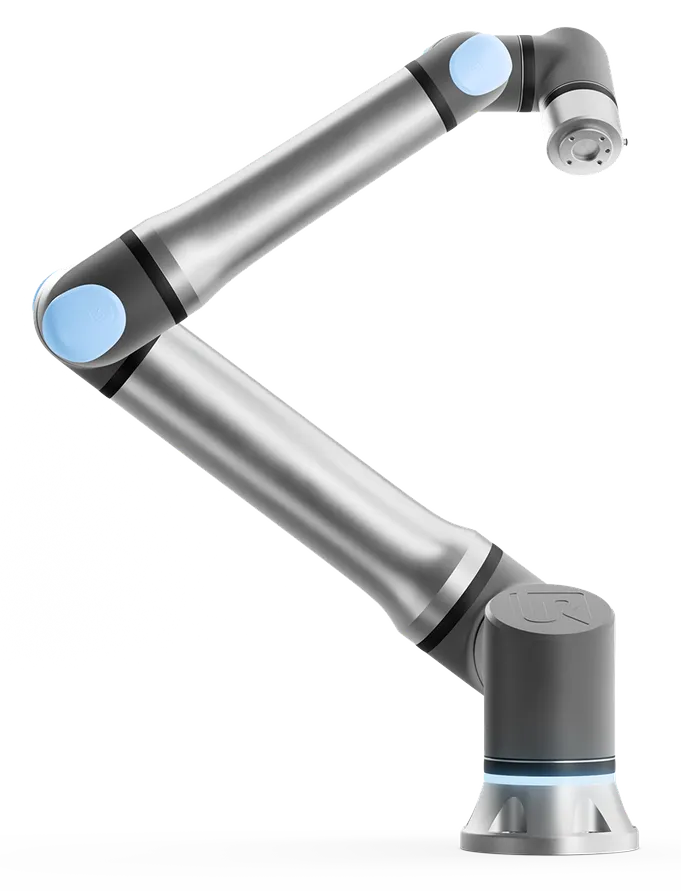

Universal Robots are flexible, lightweight and user-friendly 6-axis industrial robots. They are developed specially for small and medium enterprises, which have the need for flexible and effective automation that can provide them fast return of investments. The robots are easy to move around and do not require sturdy bases due to their lightweight structure. Safety fencing is not needed.
Equipped with intuitive programming, versatile use and an almost endless list of opportunities for add-ons, the e-Series is able to complement production regardless of your industry, company size or product nature.
UR3e: Small but powerful, the UR3e has a payload of 3kgs and reach radius of 500mm. With 360 degree rotation on all wrist joints and infinite rotation on the end joint, this table- top cobot handles high precision tasks and light assembly tasks with ease.
UR5e: The medium-sized member of the Universal Robots family is ideal for automating low-weight processing tasks with its 5kgs payload and 850mm reach radius. Easy to program and fast to set up, the UR5e strikes the perfect balance between size and power.
UR10e: With the ability to automate tasks up to 12.5kgs with no compromise on precision, the UR10e is the Universal Robots’ family’s most powerful robot. A reach radius of 1300mm also enables it to carry out tasks like packaging and palletizing in facilities where there is a larger distance between different operating areas.
UR16e: UR16e delivers an impressive 16kg (35.3 lbs.) of payload an 900mm reach within a small footprint, and is ideal for use in heavy machine tending, material handling, packaging, and screw and nut driving applications. This powerhouse robot allows for heavier end of arm tooling and multi-part handling, and is especially useful for achieving shorter cycle times.
The UR20 is built for higher payloads, faster speeds, and superior motion control all within a lightweight, small footprint system for optimal versatility within your existing production space. No special electrical hookups or costly wiring solutions are required. Even with the big step up in performance, a single-phase standard power outlet is all that’s needed to power the UR20.
With a 1750 mm reach and 20 kg payload capacity, UR's next generation cobot handles more tasks, fits more applications, and assists in more environments than ever before.
Autonomous Bin Picking for Machine Tending
The ActiNav Autonomous Motion Module (AMM) synchronously handles vision processing, collision-free motion planning, and autonomous real-time robot control.
ActiNav setup is intuitive using the Universal Robots teach pendant, teach by demonstration. The intuitive flow-based wizard-guided setup allows in-house resources to do the work in just six steps.
Higher machine uptime with collision-free motion: Autonomous collision-free motion within its environment means fewer operator interventions and system restarts.
Less refilling with deep bins: Autonomous motion enables ActiNav to operate inside deep bins which hold more parts, allowing the systems to run unattended longer and require less filling. When the bin gets low on parts, it notifies workers by an alert light that it’s ready for more parts.
Accurate part placement: Machine tending requires parts to be accurately placed and oriented in the same way each time. The high-resolution sensor and CAD matching enable high accuracy picks and ensures the part is placed in the same way into a fixture each time.
Ehnaced support safeguards performance, increases uptime and reduces costs
UR Service360 gives you new ways to proactively monitor, optimize and safeguard cobot performance with enhanced support and preventative maintenance. The comprehensive support offerings protect production lines, maximize uptime, reduce risk and promote success by ensuring that you are prepared for the unexpected.
Complementing our standard product warranty, Service360 offers the peace of mind you need to run your business. It’s available in two different packages, UR Service360 Basic and UR Service360 Advanced.
R.R.Floody Company is a Universal Robots distributor in Chicago and Northern Illinois. We offer technical support to help our customers solve their applications.
