Mitsubishi Electric - Economy Motion Solution


Servo Solutions for Any Application

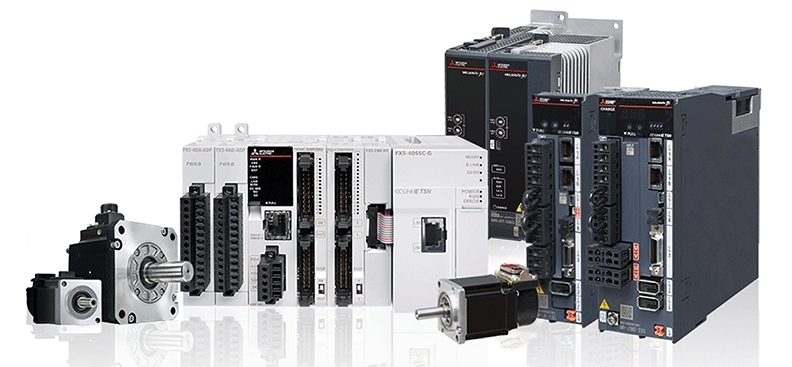

Economy Solutions from Mitsubishi Electric provides a low-cost, reliable, powerful, and easy-to-configure bundle of components allowing OEMs and system integrators to integrate high-precision motion control quickly, effortlessly, and affordably into their applications. There are three solutions to choose from all dependent on your motion needs. Compact Motion leverages Mitsubishi Electric's new FX5 Motion Module, FX5 PLCs, and their J5/JET drives and motors for small to medium-sized systems delivering premium performance at an affordable price. Basic Motion is a low-cost solution best suited for small systems. This solution uses the integrated networking of the FX5 to allow the control of MR-J5/JET amplifiers and operates over the CC-Link IE Field Basic network. Pulse Motion is for small systems and uses the J5-A and JE-A amplifiers. This solution operates over pulse train communication that allows easy integration with third party PLCs. Whether you are looking for the best performance or the best value, Economy Solutions have the options to meet your motion needs.





toolset

toolset

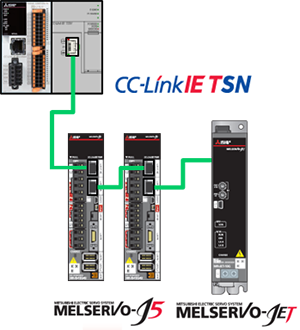

Compact Motion

The Compact Motion leverages Mitsubishi Electric's new FX5 Motion Module, FX5 PLCs, and our J5/JET drives and motors to deliver premium performance at an affordable price. Available in up to 7.0 kWs, the Compact Motion offers up to 8 axes of synchronized motion per module and operates on the new CC-Link IE TSN network allowing for unparalleled communication speeds.

Compact Motion Key Features:

  • Best suited for small to medium sized systems
  • Supports 8 synchronized axes per motion module, up to 4 modules per PLC
  • Ethernet based connectivity using CC-Link IE TSN
  • PLC open function block library
  • IoT capable, webserver, advanced motion control
  • High-speed mark detection

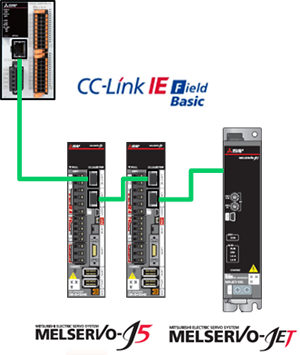

Basic Motion

The Basic Motion uses the integrated networking of the FX5 to allow the control of MR-J5/JET amplifiers and motors at a very low cost. The Basic Motion operates over the CC-Link IE Field Basic network and allows the integration of other IE Field Basic compatible devices.


Basic Motion Key Features:

  • Best suited for small systems
  • Supports up to 16 stations, no synchronized motion
  • Ethernet based connectivity using CC Link IE Field Basic
  • PLC open function block library
  • Low cost, medium performance
classification
easybuilder

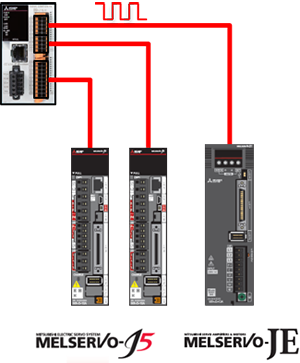

Pulse Motion

The Pulse Motion uses the J5-A and JE-A amplifiers to allow for easy integration with third party PLCs. The Pulse Motion operates over pulse train communication which makes it able to communicate with almost any PLC.


Pulse Motion Key Features:

  • Best suited for small systems
  • Pulse Train network for simple servo axis
  • Low performance, medium cost
  • Motion module not required
